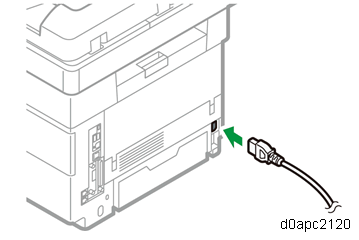

1. Connect the power cord to the power connector at the back of the machine.

  2. Connect the power cord to the wall outlet.

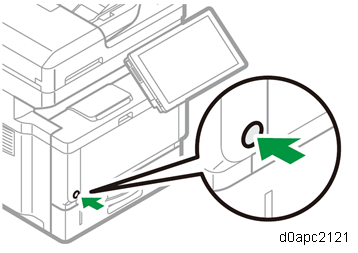

  3. Press the main power switch.

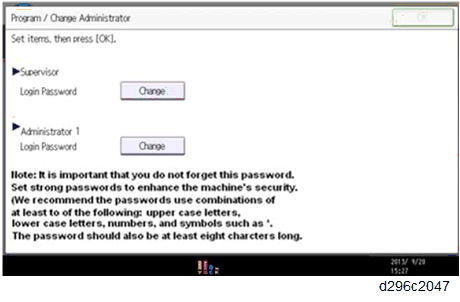

    The machine starts up. Following the start screen, the [Program/Change Administrator] screen appears.

  4. Set the Administrator/Supervisor Login password or skip this screen temporarily.
    If your customer change the password soon, go to step 5.
    If you want to skip this screen, go to step 6.

  5. Ask your customer to change the login password for Supervisor and Administrator 1 as following.
    1. Enter the password, and then press [OK].
    2. Enter the password again for confirming, and then press [OK] to register them.
    3. Press [OK]. The home screen is displayed.

  6. Execute SP5-755-002 (Display Setting: Hide Administrator Password Change Scrn) to skip the [Program/Change Administrator] screen.
    The home screen is displayed.

    • The Program/Change Administrator screen will be displayed every time the power is turned ON.
    • We recommend that customers set the passwords from the Program/Change Administrator screen.
    • The passwords for Supervisor or Administrator 1 to 4 can be set via “System Settings”. However, if the passwords are set in the Program/Change Administrator screen, this screen will be displayed every time the power is turned ON.

    If a password is not necessary, this screen can be disabled with the following procedure.

    1. On the Program/Change Administrator screen, press [Change] next to Supervisor and then press [OK] without inputting any password.
    2. Press [OK] again when the Confirm password screen is displayed.
    3. For Administrator 1, do the same procedure as steps 1 and 2.

    4. Press [OK]. The home screen is displayed.
