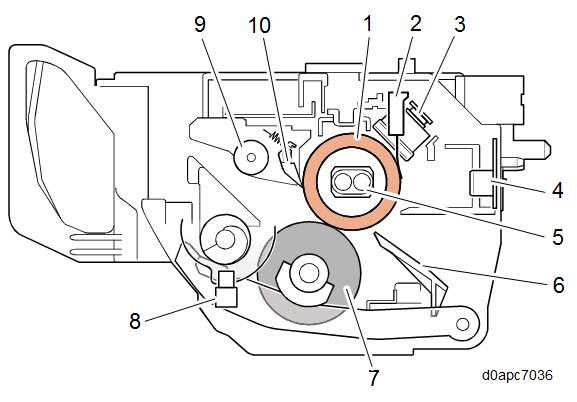

| No. | Name | No. | Name |
|---|---|---|---|
| 1 | Hot roller | 6 | Fusing entrance guide |
| 2 | Fusing thermistor (TH1) | 7 | Pressure roller |
| 3 | Fusing thermostat (center/end) (TH3, TH4) | 8 | Fusing nip pressure position sensor (S7) *At main machine side |
| 4 | Fusing thermopile (TH2) *At main machine side | 9 | Fusing exit roller |
| 5 | Heating lamp (center/end) | 10 | Hot roller strippers |
