- Remove the upper cover. (Upper Cover (Printer), Upper Cover (MF))

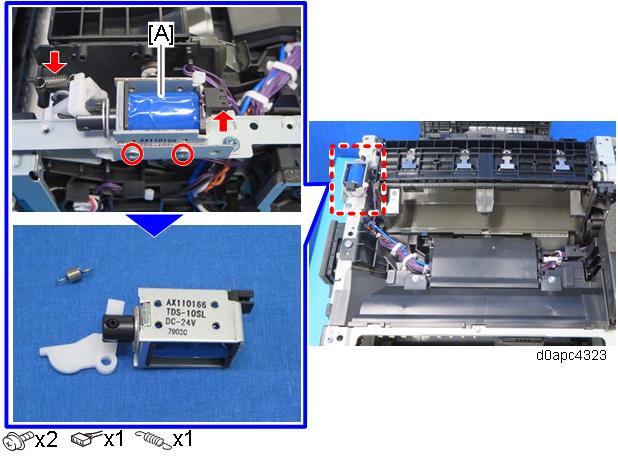

- Remove the exit junction gate solenoid (SOL1) [A].
