SPDF Registration Sensor (S16)

Remove the SPDF front cover. (SPDF Front Cover)
Open the SPDF.

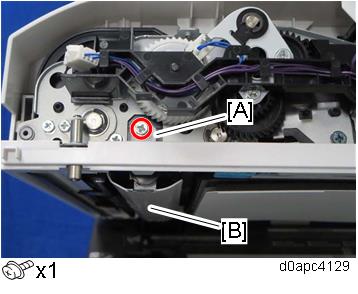

Remove the plate [A] and then remove the scanning guide plate [B].

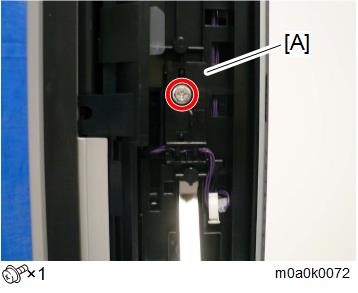

Remove the SPDF registration sensor (S16) with the bracket [A].

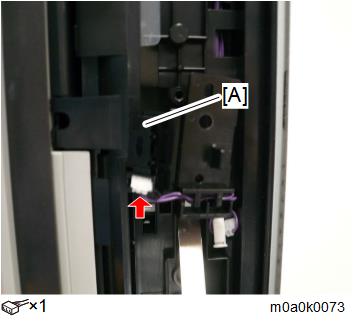

Remove the SPDF registration sensor (S16) [A] from the bracket.
