Gear Unit
Apply silent grease to the gear unit at the locations shown below.
| Location | Part name | Note | |
|---|---|---|---|

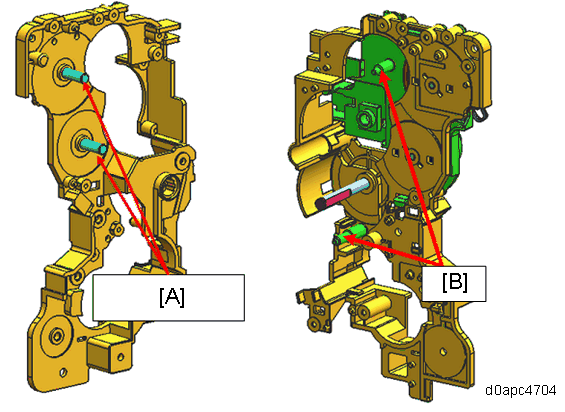

| [A] | Gear unit housing | HOUSING:DRIVE:PAPER FEED:ASS'Y | 2 places. Apply 10 mm to shaft tip. |
| [B] | HOUSING:DRIVE:PAPER FEED:ASS'Y HOLDER:DRIVE:TONER SUPPLY | Apply 10 mm to shaft tip. | |

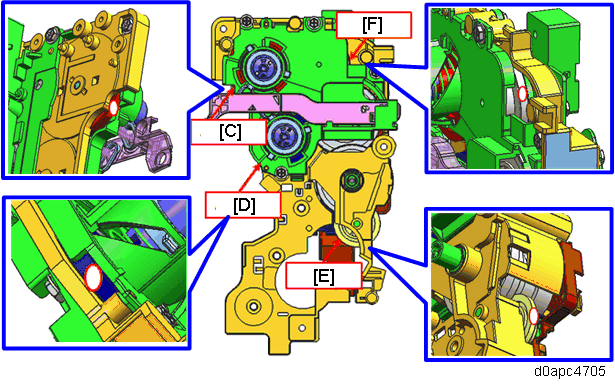

| [C] | Gear unit gear teeth | GEAR:DRIVE:TONER SUPPLY:NO.6 | |
[D] | GEAR:DRIVE:TONER RECYCLING:NO.2 | ||
[E] | GEAR:DRIVE:CONNECTING:NO.3 | ||
| [F] | GEAR:DRIVE:TONER SUPPLY:NO.3 |
| Coating Amt. | Maximum | Minimum |
|---|---|---|
[A] [B] |  |  |
[C] [D] [E] [F] |  |  |
Main Unit Side Plates
Apply silent grease to the main unit side plates at the locations shown below.
| Location | Part name | Note | |
|---|---|---|---|

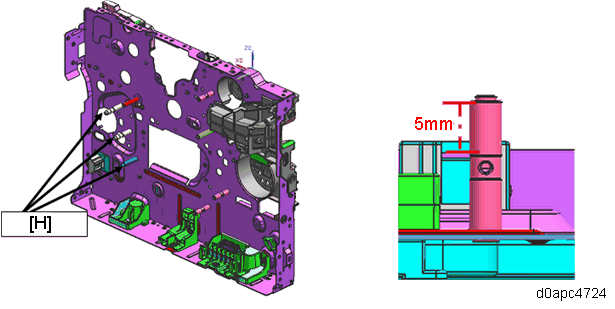

| [H] | The crimped shaft of the main unit side plate | SIDE PLATE:RIGHT:500:PEEN | 3 places. Apply 5 mm to shaft tip. |

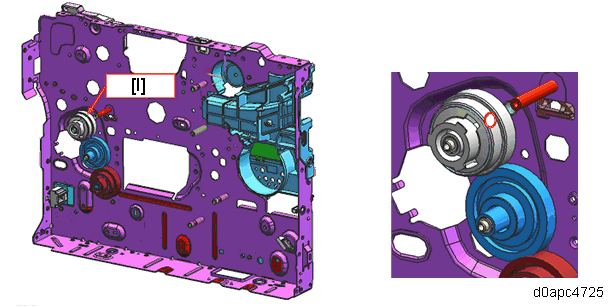

| [I] | Ass’y gear on the main unit side plate | GEAR:DRIVE:PAPER FEED:NO.3 | Pulley not exposed. |
