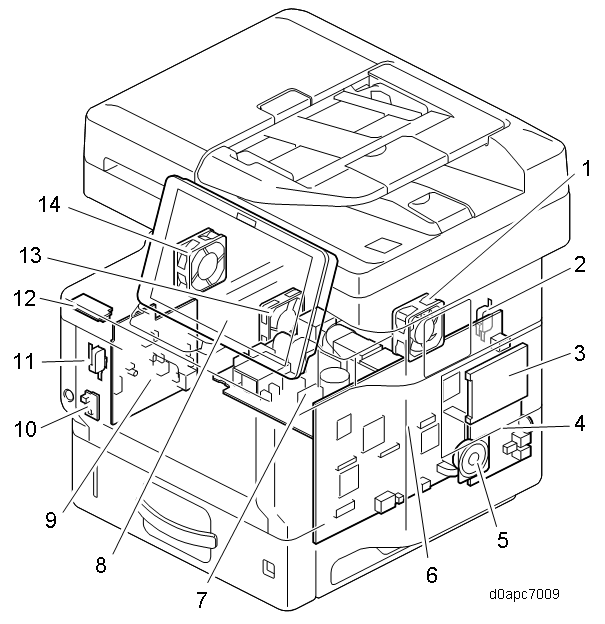

No. | Description | No. | Description |
|---|---|---|---|
1 | PCDU cooling fan (right) (FAN1) | 8 | Operation panel (Smart Operation Panel） |
2 | Rear interlock switch (SW2) | 9 | HVPS |
3 | HDD | 10 | DC switch (SW3) |
4 | FCU | 11 | Front interlock switch (SW1) |
5 | Speaker | 12 | NFC board |
6 | SCB | 13 | PSU cooling fan (FAN3) |
7 | PSU | 14 | PSU cooling fan (left) (FAN2) |
