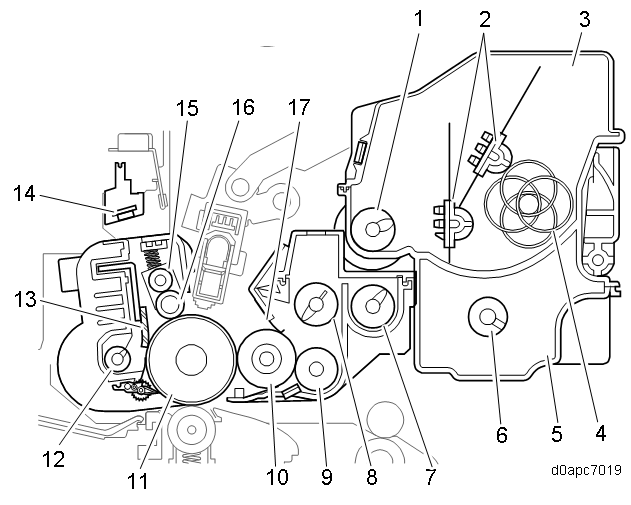

The toner cartridge is mounted on the PCDU, installed in the machine, but can be removed separately.
| No. | Name | No. | Name |
|---|---|---|---|
| 1 | Toner supply coil | 10 | Development roller |
| 2 | Toner supply agitator (x2) | 11 | OPC drum |
| 3 | Toner hopper | 12 | Waste toner collection coil |
| 4 | Toner mixing coil | 13 | Drum cleaning blade |
| 5 | Used toner collection box | 14 | Quenching lamp *At main machine side |
| 6 | Used toner transport coil | 15 | Charge cleaning roller |
| 7 | 1st mixing coil | 16 | Charge roller |
| 8 | 2nd mixing coil | 17 | Doctor blade |
| 9 | Toner supply roller |
