Bypass Tray Paper End Detection

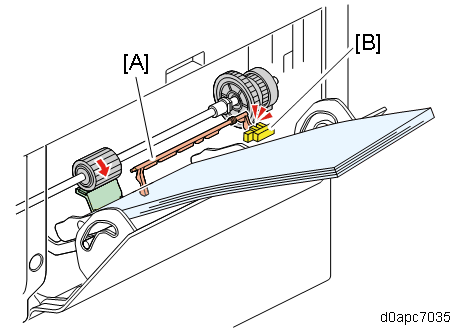

The bypass tray is equipped with a paper detection feeler [A] and bypass paper end sensor (S2) [B] that detect the presence of paper in the tray. The bypass paper end sensor (S2) goes on (gap open) when there is a paper in the tray, and then goes off (gap blocked by the feeler) after the last sheet feeds to signal the paper end.

  • ON (Sensor gap open): Paper in the tray
  • OFF (Sensor gap blocked): Paper out

Bypass Tray Paper Size Detection

The machine does not have a function to detect the size of paper loaded in the bypass tray.
