Before replacing the paper feed roller, reset the PM counter.

  1. Turn the power ON and enter the SP mode.

  2. Execute the SP7-804-005 (Reset PM Counter: Feed Tray) to reset the PM counter.

  3. Turn the power OFF.



  1. Remove the paper tray.

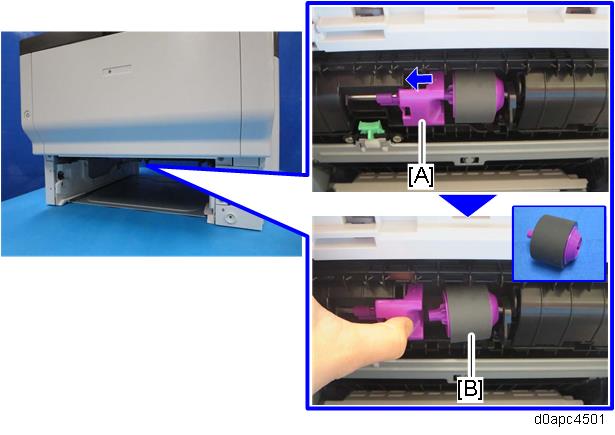

  2. Slide the lever [A] to the left to remove the paper feed roller [B].
