When a jam occurs, the jam code is displayed on the operation panel.

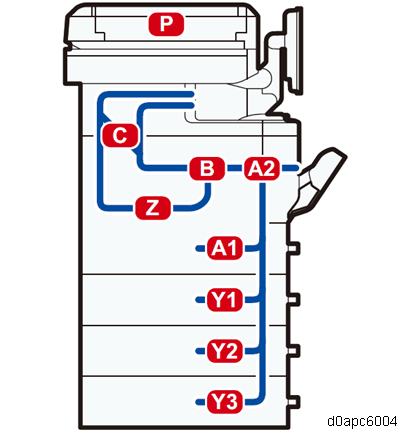

Only MF model, the location where the jam occurred is displayed on the operation panel as shown below:



Printer model, the message is displayed on the operation panel as shown below:

  • (A1) Open Front Cover and remove the paper.
  • (A2) Remove misfeed in Trays. Opn & cls Frt. Cov.
  • (B) Open Front Cover and remove the paper.
  • (C) Open Front/Rear Cover and remove misfeed.
  • (Y1) Remove misfeed in Tray 2. Opn & cls Frt. Cov.
  • (Y2) Remove misfeed in Tray 3. Opn & cls Frt. Cov.
  • (Y3) Remove misfeed in Tray 4. Opn & cls Frt. Cov.
  • (Z) Open Tray1/R.Cov & remove ppr.
