Apply quick-drying grease to the locations shown below.
| Location | Parts name | Note | |
|---|---|---|---|

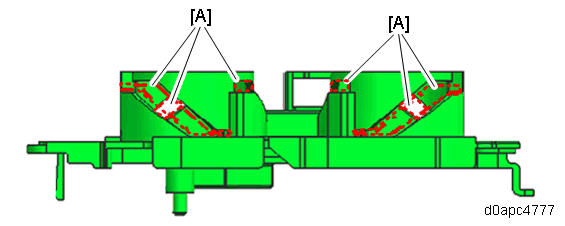

| [A] | Holder grooves | HOLDER:DRIVE:TONER SUPPLY | 6 places. Apply to the groove surfaces. |

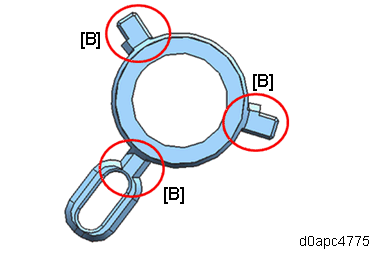

| [B] | Link tab | LINK:DRIVE:TONER SUPPLY | 3 places. Apply to the tab surfaces. |
Apply quick-drying grease to the locations shown below.
| Location | Parts name | Note | |
|---|---|---|---|
| [A] | Holder grooves | HOLDER:DRIVE:TONER SUPPLY | 6 places. Apply to the groove surfaces. |
| [B] | Link tab | LINK:DRIVE:TONER SUPPLY | 3 places. Apply to the tab surfaces. |
