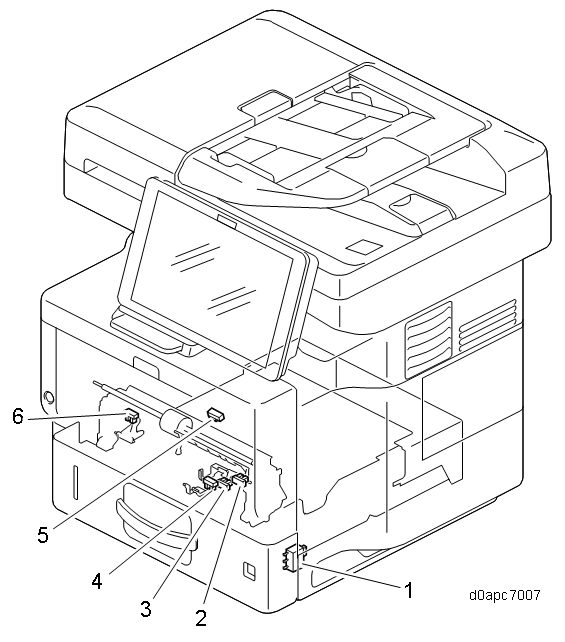

No. | Description | No. | Description |
|---|---|---|---|
1 | Paper size switch (SW4) | 4 | Paper end sensor (S6) |
2 | Bypass paper end sensor (S2) | 5 | Registration sensor (S5) |
3 | Bypass tray sensor (S3) | 6 | Paper near-end sensor (S4) |
No. | Description | No. | Description |
|---|---|---|---|
1 | Paper size switch (SW4) | 4 | Paper end sensor (S6) |
2 | Bypass paper end sensor (S2) | 5 | Registration sensor (S5) |
3 | Bypass tray sensor (S3) | 6 | Paper near-end sensor (S4) |
