- MF model: Remove the SCB with bracket. (SCB with the Controller Box (MF Model))

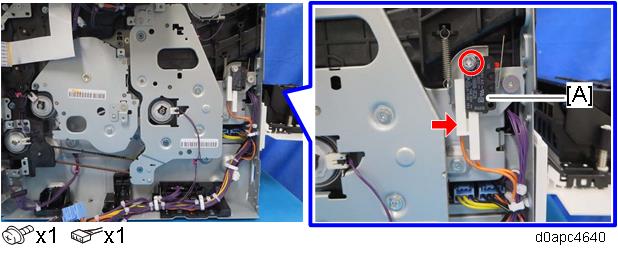

Printer model: Remove the controller board. (Controller Board (Printer Model)) - Remove the rear interlock switch (SW2) [A].
