- Remove the right cover. (Right Cover (Printer), Right Cover (MF))

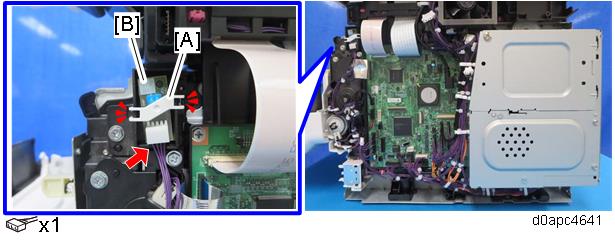

- Release the two hooks to remove the cover [A], and then remove the temperature/humidity sensor (S11) [B].
