- Remove the left cover. (Left Cover (Printer), Left Cover (MF))

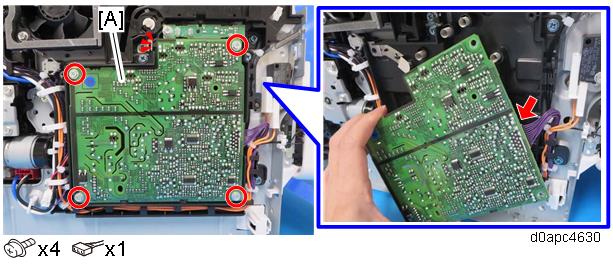

- Release the hook to remove the HVPS [A].
