- Remove the paper cassette.
Open the front cover [A] by pressing the front cover button.
Open the rear cover [A].

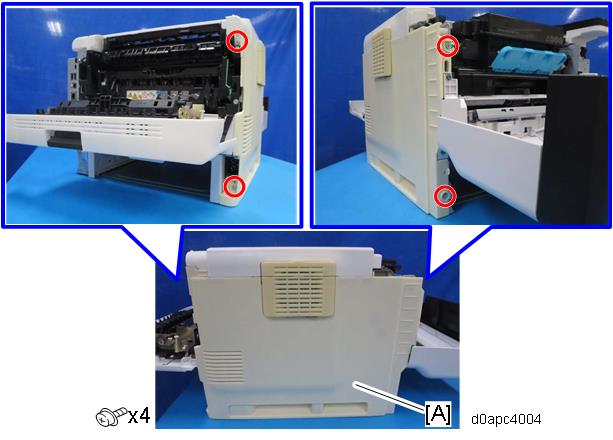

Remove the left cover [A].

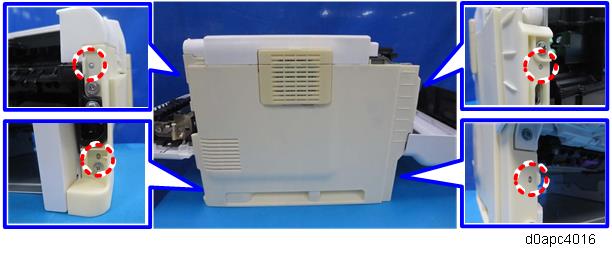

The left cover is held in position by bosses on the frame of the main machine, so disconnect these bosses before you remove the left cover.
