Fusing Pressure/Release Motor Unit

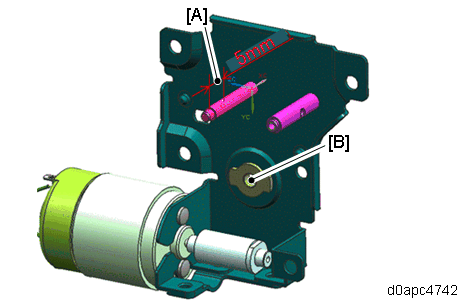

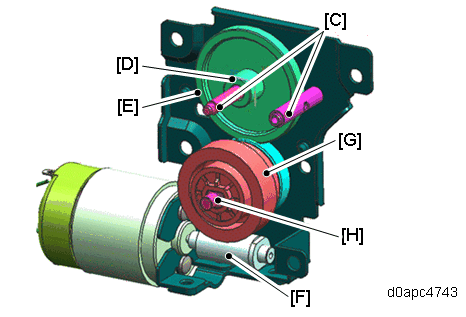

Apply silent grease to the fusing pressure/release motor unit at the locations shown below.

 LocationPart nameNote
[A]Fusing pressure/release motor peenBRACKET:DRIVE:PRESSURE RELEASE:PEEN5 mm from the tip.
[B]Lubricated bearing of fusing pressure/release motorPLAIN SHAFT BEARING:4X8X2.8
[C]Fusing pressure/release motor peenBRACKET:DRIVE:PRESSURE RELEASE:PEEN2 places. 5 mm from the tip.
[D]Small gear teeth of fusing pressure/release motor unitGEAR:DRIVE:PRESSURE RELEASE:SUN
[E]Large gear teeth of fusing pressure/release motor unit
[F]

Worm gear of fusing pressure/release motor

WORM GEAR:DRIVE:PRESSURE RELEASE:Z2Motor bearing housing cannot be exposed.
[G]Surfaces of fusing pressure/release motor unit gear teethWORM WHEEL:DRIVE:PRESSURE RELEASE:Z25
[H]Tip of fusing pressure/release motor peenSHAFT:DRIVE:PRESSURE RELEASE:PRESS FIT

Coating Amt.MaximumMinimum

[A]

[C]

[B]

[D]

[E]
[F]
[G]
[H]



Pressure Release Support Shaft

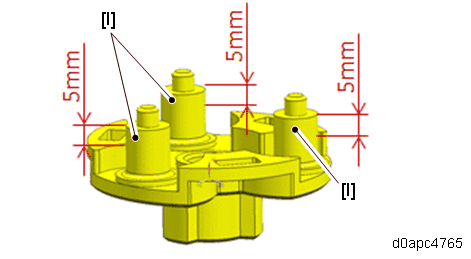

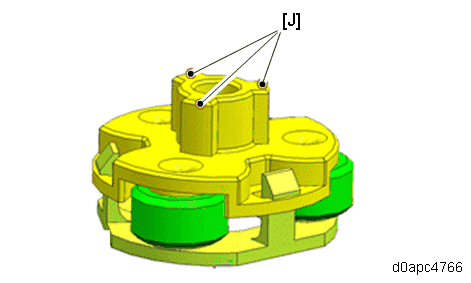

Apply silent grease to the pressure release support shaft at the locations shown below.

 LocationPart nameNote
[I]Support shaftSUPPORT SHAFT:DRIVE:PRESSURE RELEASE:PLANETARY3 places. Apply 5 mm to shaft tip.
[J]Support shaft coupling3 places.

Coating Amt.MaximumMinimum
[I]
[J]

* The amount of grease shown with the colored parts.
