P 501/502, IM 350F/350/430Fb/430F
Replacement and Adjustment
SPDF (MF Model Only)
Feed Cover Sensor (S15), Original Set Sensor (S14)
Remove the SPDF front cover. (
SPDF Front Cover
)

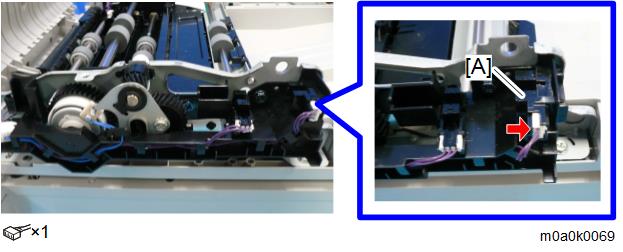

Remove the feed cover sensor (S15) [A].

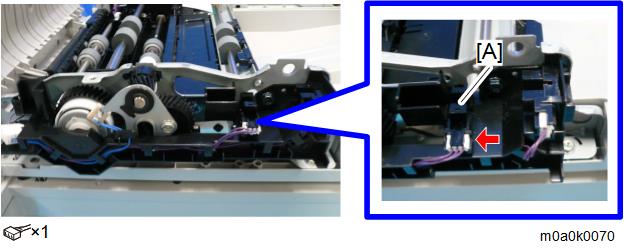

Remove the original set sensor (S14) [A].
