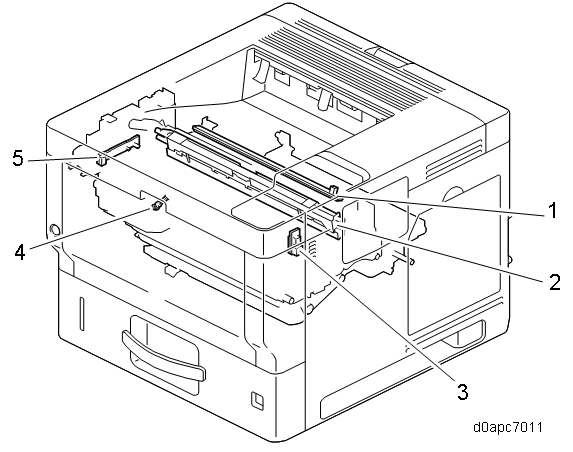

No. | Description | No. | Description |
|---|---|---|---|
1 | Quenching lamp | 4 | Image creation thermistor (TH5) |
2 | LED unit | 5 | Toner end sensor (S9) |
3 | Temperature/humidity sensor (S11) |
No. | Description | No. | Description |
|---|---|---|---|
1 | Quenching lamp | 4 | Image creation thermistor (TH5) |
2 | LED unit | 5 | Toner end sensor (S9) |
3 | Temperature/humidity sensor (S11) |
