1. MF model: Remove the SCB with the bracket. (SCB with the Controller Box (MF Model))
    Printer model: Remove the BCU with the bracket. (BCU with the Bracket (Printer Model))

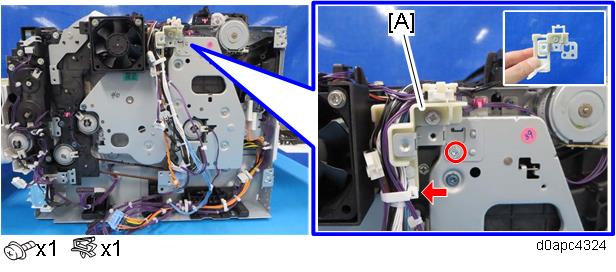

  2. Printer model: Remove the harness guide [A].

  3. Remove the duplex clutch (CL1). (Duplex Clutch (CL1))

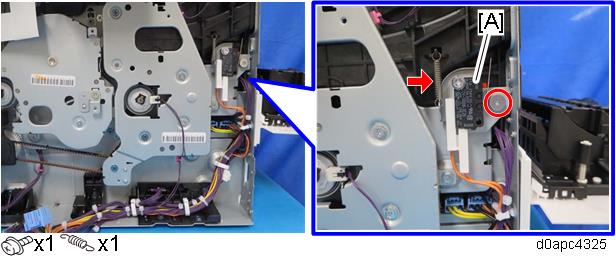

  4. Remove the Rear interlock switch (SW2) [A] with the bracket.

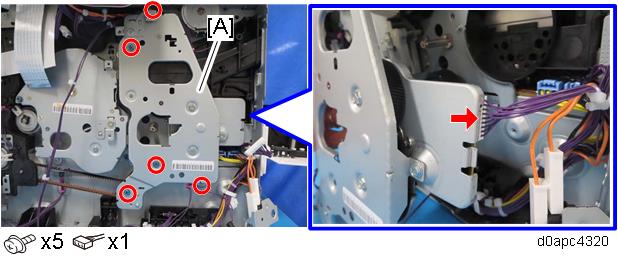

  5. Remove the feed/fusing motor (M4) unit [A].

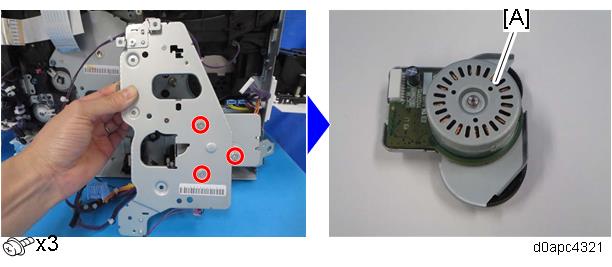

  6. Remove the feed/fusing motor (M4) [A].
