Feed/fusing Motor Unit

Apply silent grease to the feed/fusing motor (M4) at the locations shown below.

 LocationPart nameNote

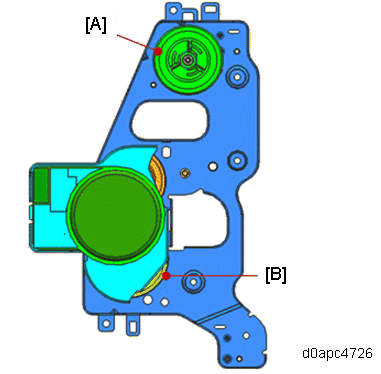

[A]

Feed/fusing motor unit gears

GEAR:DRIVE:FUSING:NO.5
[B]

Feed/fusing motor gears

GEAR:DRIVE:TRANSPORT:NO.1

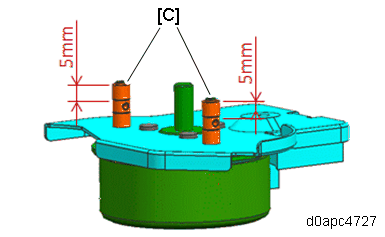

[C]Feed/fusing motor peen tipBRACKET:DRIVE:FUSING:MOTOR:PEEN2 places. Apply 5 mm to shaft tip.

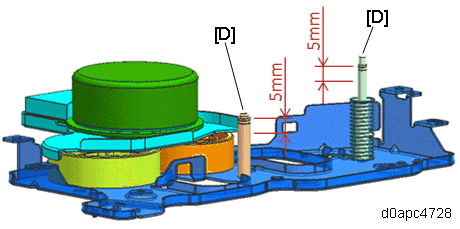

[D]Feed/fusing motor unit peen tipBRACKET:DRIVE:FUSING:NO.1:PEEN2 places. Apply 5 mm to shaft tip.



Coating Amt.MaximumMinimum
[A]
[B]

[C]

[D]



Main Unit Side Plates

Apply silent grease to the main unit side plates at the locations shown below.

 LocationPart nameNote

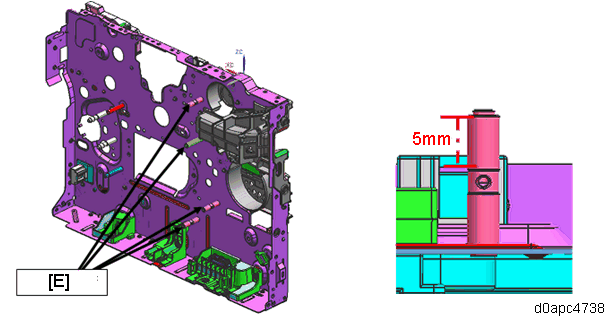

[E]Main unit side plate peensSIDE PLATE:RIGHT:500:PEEN4 places. Apply 5 mm to shaft tip.

Coating Amt.MaximumMinimum
[E]
