Fusing Thermostat (Center, End) (TH4, TH3)

Remove the fusing upper cover (Fusing Upper Cover)

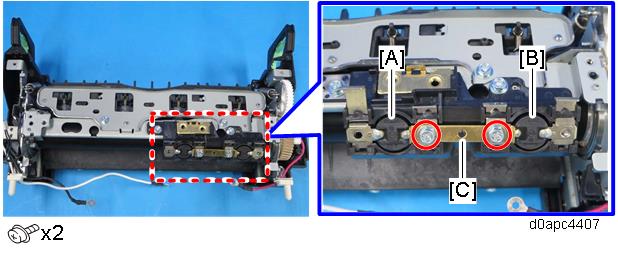

Remove the plate nut [C] to remove the fusing thermostat (center) (TH4) [A] and the fusing thermostat (end) (TH3) [B].
