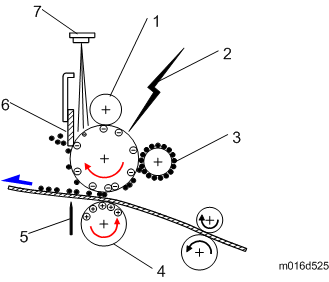

| No. | Description | |
|---|---|---|
| 1 | Drum Charge | The charge roller gives the drum a negative charge. |
| 2 | LED Optics | An LED beam writes the print data on the drum. |
| 3 | Toner | The development roller applies toner to the latent image on the drum surface. |
| 4 | Image Transfer | The transfer roller moves the toner from the drum to the paper. |
| 5 | Separation | The separation plate helps to remove the paper from the drum. |
| 6 | Cleaning | The cleaning blade removes the remaining toner on the drum surface after the image is transferred to the paper. |
| 7 | Quenching | The light from the quenching lamp neutralizes the residual charge on the drum surface. |
