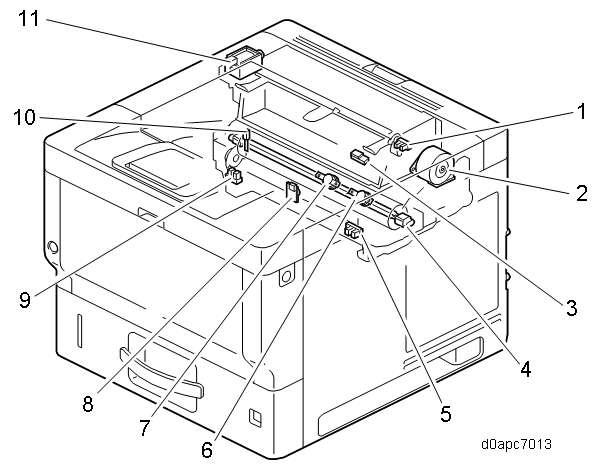

No. | Description | No. | Description |
|---|---|---|---|
1 | Paper exit full sensor (S10) | 7 | Fusing thermostat (center) (TH4) |
2 | Exit/reverse motor (M1) | 8 | Fusing thermopile (TH2) |
3 | Paper exit/reverse sensor (S1) | 9 | Fusing nip pressure position sensor (S7) |
4 | Fusing lamp x2 | 10 | Fusing thermistor (end) (TH1) |
5 | Duplex entrance sensor (S8) | 11 | Exit junction gate solenoid (SOL1) |
| 6 | Fusing thermostat (end) (TH3) |
