Remove the paper cassette.
Open the front cover [A] by pressing the front cover button.
Open the rear cover [A].

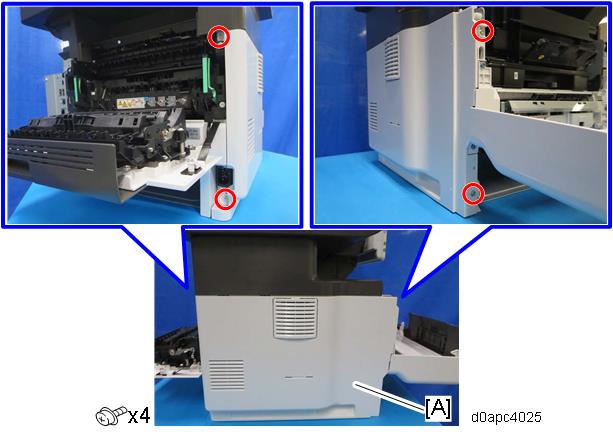

Remove the left cover [A].

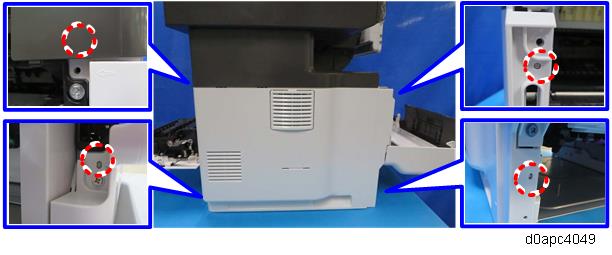

The left cover is held in position by bosses on the frame of the main machine, so the left cover must be disconnected from these bosses before removal. The rear upper boss is not visible from outside so confirm its location in the photo below.
