- Remove the left cover. (Left Cover (Printer), Left Cover (MF))

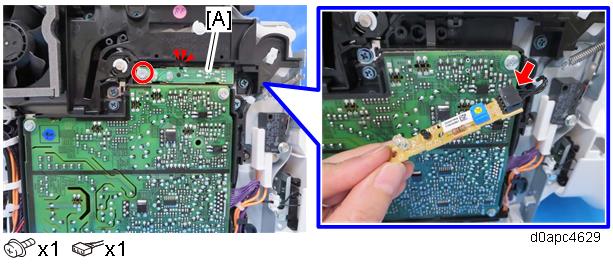

- Remove the toner end sensor (S9) [A].
