1. Remove the bypass feed unit. (Bypass Feed Unit)
  2. Remove the HVPS with the bracket. (HVPS with the Bracket)

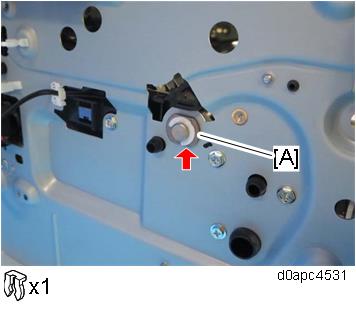

  3. Remove the bearing [A] of the registration drive roller on the left side.
  4. Remove the registration clutch (CL5). (Registration Clutch (CL5))

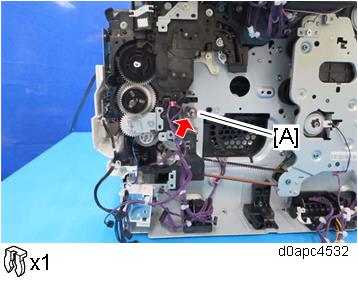

  5. Remove the bearing [A] of the registration drive roller on the right side.
  6. Remove the registration sensor (S5). (Registration Sensor (S5))

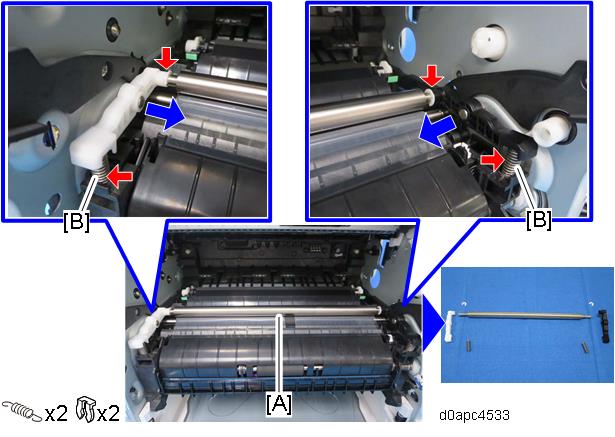

  7. Remove the springs [B] of the holders for registration driven roller [A] on both sides, and then slide the holder (left end white, right end black) to remove the registration driven roller with the holders.

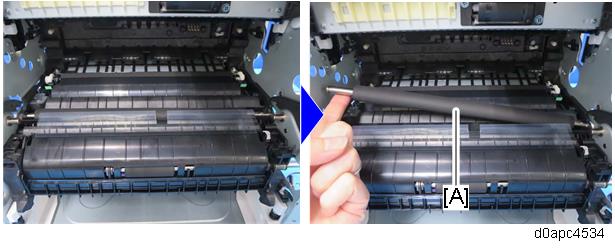

  8. Remove the registration drive roller [A].

    When attaching/removing the registration drive roller, be careful not to damage it with the edge of the cover sheet.
