- Remove the SPDF rear cover. (SPDF Rear Cover)

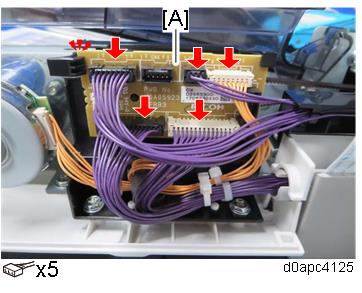

- Release the hook, and then remove the SPDF relay board [A].
