1. Remove the rear lower cover.  (Rear Lower Cover (MF))
  2. Remove the SCB with bracket. (SCB with the Controller Box (MF Model))

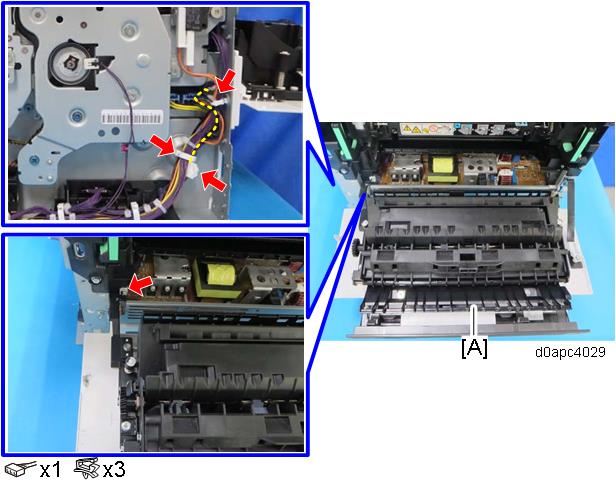

  3. Release the harness from rear cover [A].

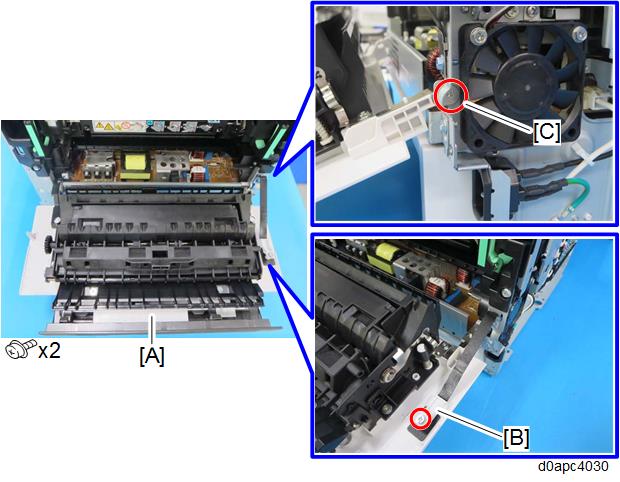

  4. Remove the fastened part [B] for the belt of rear cover [A], and then remove the screw [C] holding the hinge.

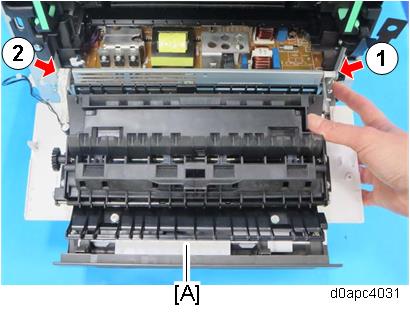

  5. Release both hinges to remove the rear cover [A]. Release the right hinge first.
