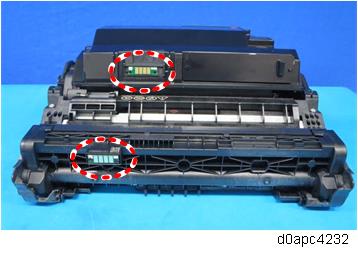

Do not touch the ID chip with bare hands.



  1. Open the front cover by pressing the front cover button.

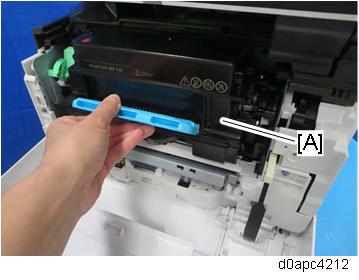

  2. Hold the grip to pull out the PCDU with the toner cartridge [A].

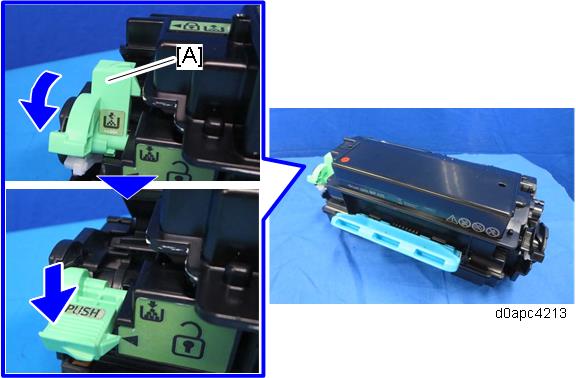

  3. Turn the lock lever [A], and then press down until it is horizontal.

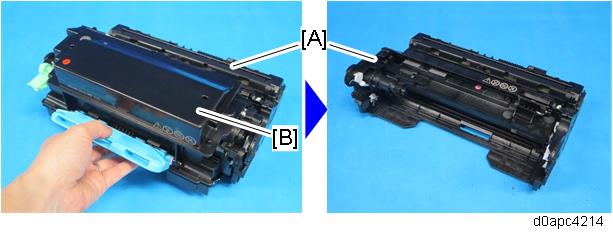

  4. Remove the toner cartridge [B] from the PCDU [A].

    Never disassemble a PCDU. Disassembling a PCDU could cause the focus of the LED to shift, resulting in poor images.
