1. Remove the upper cover. (Printer models: Upper Cover (Printer), MF models: Upper Cover (MF))
  2. MF model: Remove the SCB with bracket. (SCB with the Controller Box (MF Model))
    Printer model: Remove the controller board. (Controller Board (Printer Model))

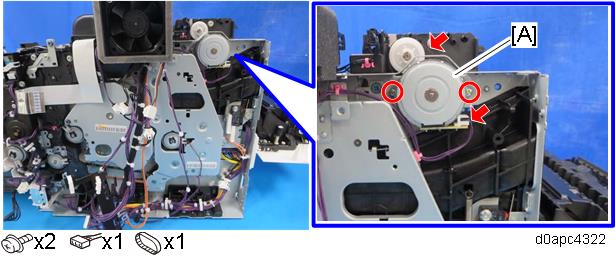

  3. Remove the exit/reverse motor (M1) [A].
