Before replacing the bypass friction pad, reset the PM counter.

  1. Turn the power ON and enter the SP mode.

  2. Execute the SP7-804-058 (Reset PM Counter: Spr. Bypass) to reset the PM counter.

  3. Turn the power OFF.



  1. Remove the bypass feed unit. (Bypass Feed Unit)

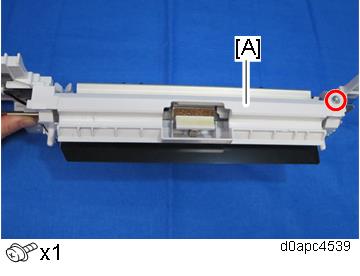

  2. Remove the guide plate [A].

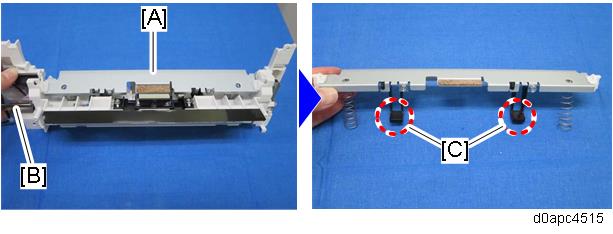

  3. Remove the bottom plate [A] upward.
    While turning the shaft of the bypass lift clutch (CL3) [B], avoid snagging the cam on lift link [C] on the bottom plate while removing it.

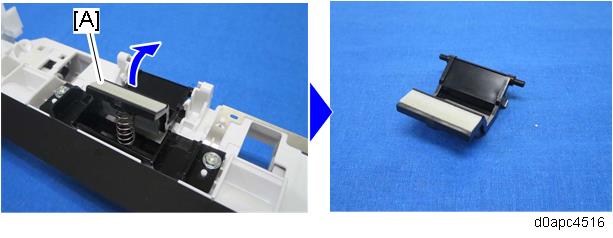

  4. Remove the bypass friction pad [A].
