P 501/502, IM 350F/350/430Fb/430F
Replacement and Adjustment
Fusing
Fusing Thermistor (TH1)
Remove the fusing upper cover. (
Fusing Upper Cover
)

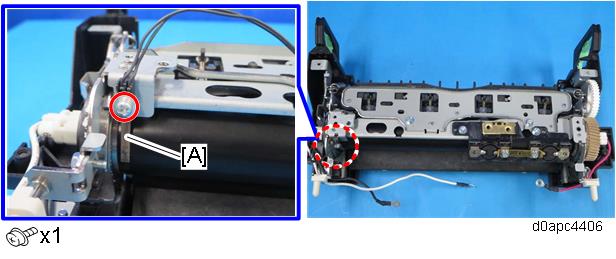

Remove the fusing thermistor (TH1) [A].
