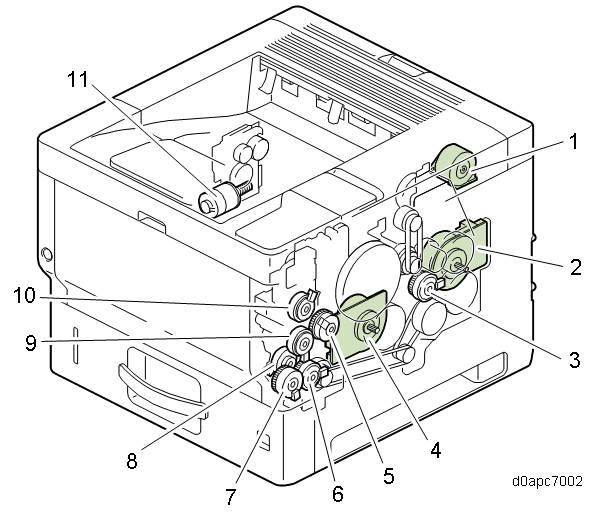

1. Exit/reverse motor (M1)
  2. Feed/fusing motor (M4)
  3. Duplex clutch (CL1)
  4. Drum motor (M3)
  5. Registration clutch (CL5)
  6. Paper feed clutch (CL6)
  7. Bypass lift clutch (CL3)
  8. Relay clutch (CL7)
  9. Bypass feed clutch (CL4)
  10. Toner supply clutch (CL2)
  11. Fusing pressure/release motor (M2)
