Before Replacing the Image Transfer Roller

User maintenance model:

Replace with an image transfer roller provided by the Maintenance Kit. The PM counter for the fusing unit is reset automatically, and at the same time, the counter for the image transfer roller is also reset.

Service maintenance model:

Before replacing the image transfer roller, reset the PM counter.

  1. Turn the power ON and enter the SP mode.

  2. Execute the SP7-804-004 (Reset PM Counter: Trans.) to reset the PM counter.

  3. Turn the power OFF.
Replacing the Image Transfer Roller

Do not touch the surface of the new image transfer roller.



  1. Remove the PCDU. (PCDU)

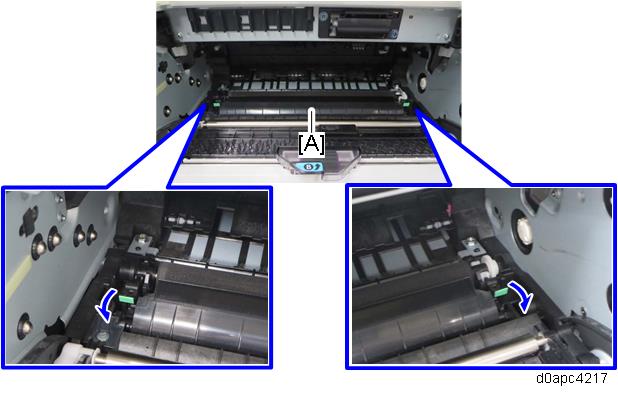

  2. Pinch both green ends of the guide [A], and then pull it towards you.

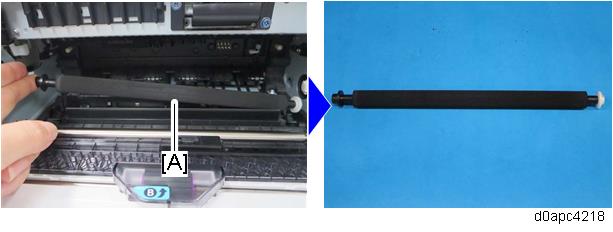

  3. Remove the image transfer roller [A].

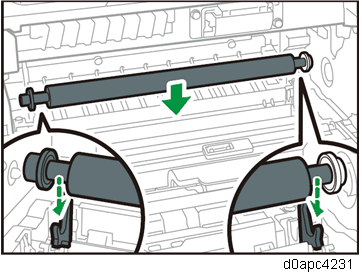

    Attach the image transfer roller with the black ring on the left end and the white ring on the right end. Place the transfer roller on the bearing of the guide plate pulled out in Step 2, and then gently push the guide plate down.
