P 501/502, IM 350F/350/430Fb/430F
Installation
File Format Converter Type M19 (D3BR-04)

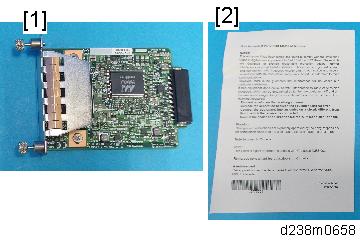

Accessories
No.
Description
Q’ty
1
File Format Converter board
1
2
Notes for Users
1
