To prevent injury from electrical shock or damage to the machine, before installation always, turn the main machine power off, and then unplug the machine power supply cord from the power source.

  1. Open the SPDF.

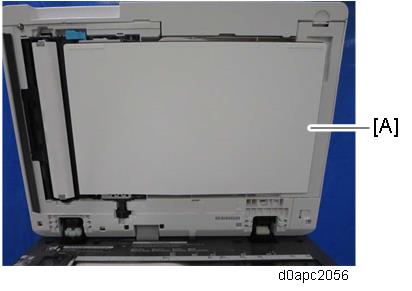

  2. Remove the platen sheet [A]. Do not place the removed platen sheet on the exposure glass.

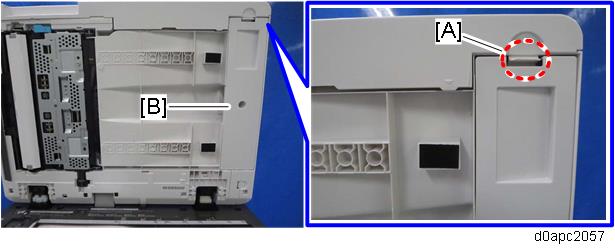

  3. Release the tab [A] to remove the SPDF bottom cover [B].

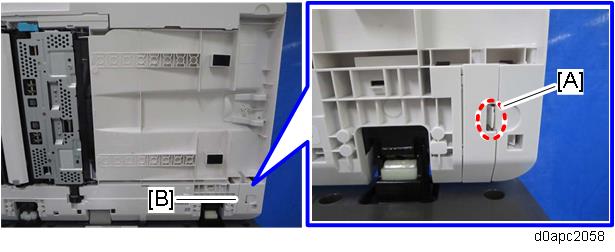

  4. Release the tab [A] to remove the harness cover [B].

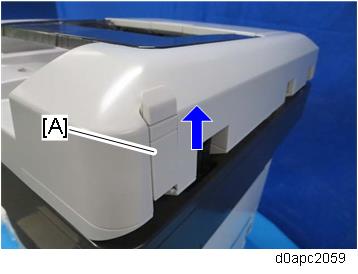

  5. At the back of the SPDF, slide the small cover [A] up and remove it.

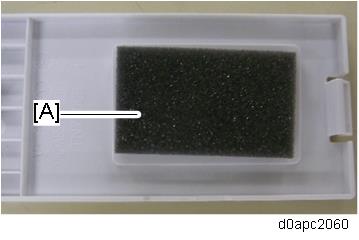

  6. If the thickness of the NFC card reader is 15.4 mm or less, set cushion [A] into the hole on the SPDF bottom cover. (The cushion is provided as an accessory with this option.)

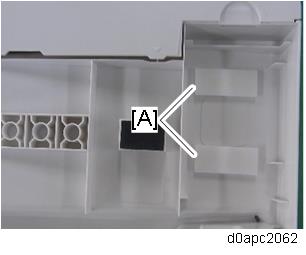

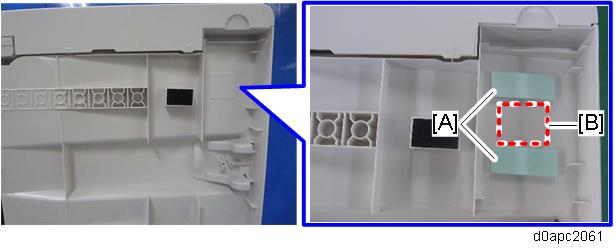

  7. Attach the double-sided tapes [A] on the bottom of the SPDF beside projection [B] as shown.

  8. Peel the double-sided tapes [A].

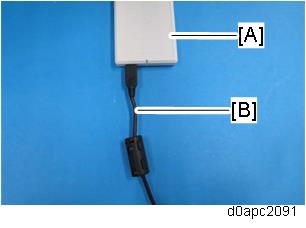

  9. Connect the USB cable [B] with the ferrite core to the NFC card reader [A].

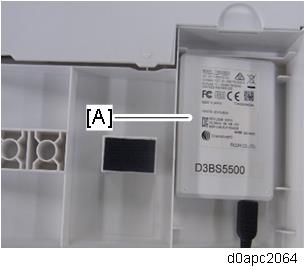

  10. Firmly fasten the NFC card reader [A] to the SPDF.

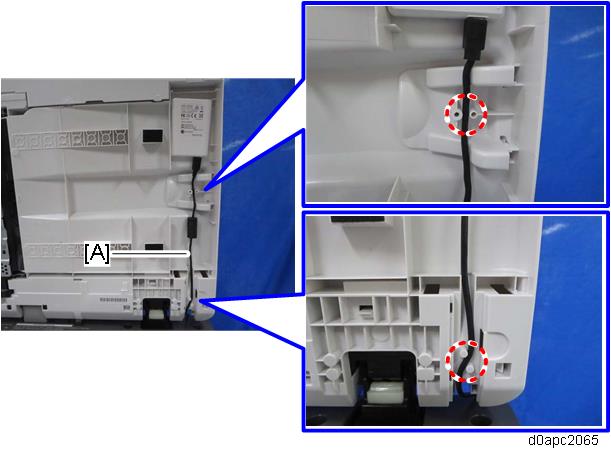

  11. Route the USB cable [A] between the tabs as shown below.

  12. Attach the SPDF bottom cover to the SPDF.

  13. Attach the harness cover to the SPDF.

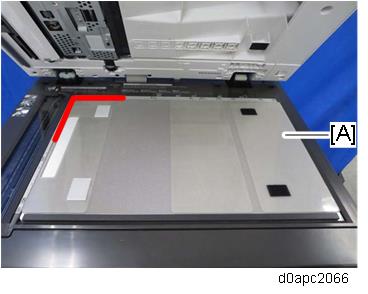

  14. Using the rear, left corner as a reference point set the platen sheet [A] on the exposure glass.

  15. Close the SPDF to attach the platen sheet.

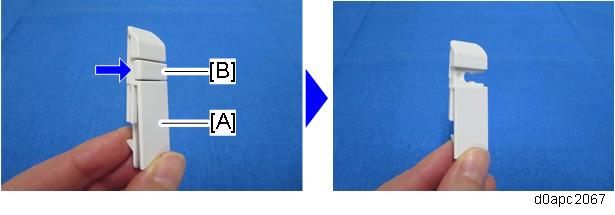

  16. From small cover [A] remove knock-out [B] to create a slot.

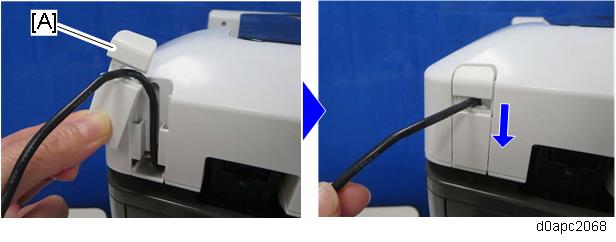

  17. Pass the USB cable through the hole, and then attach the small cover [A].

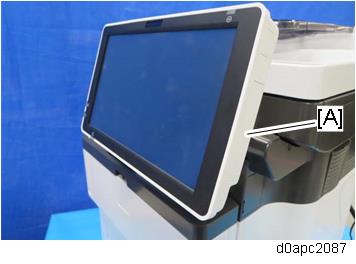

  18. Remove the side cover [A] of the operation panel.

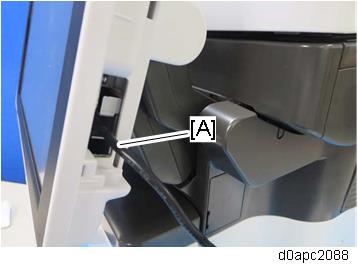

  19. Connect the USB cable [A] to the operation panel.

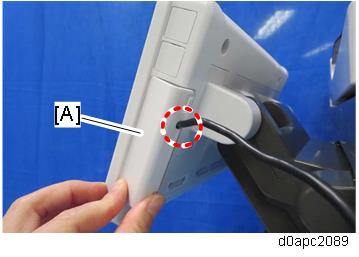

  20. Pass the USB cable through the hole, and then attach side cover [A] of the operation panel.

  21. Remove the paper cassette.

  22. Open the front cover [A] by pressing the front cover button.

  23. Open the rear cover [A].

  24. Remove the HDD cover [A] and the connector cover [B] and [C].
    Use a flathead screwdriver to remove the connector cover [B].

  25. Remove the right cover [A].

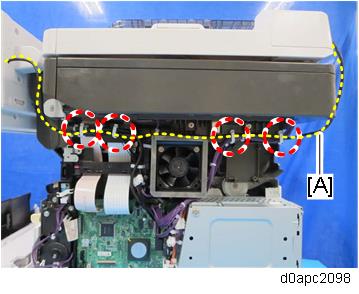

  26. Fasten the USB cable [A] with four clamps on the machine.

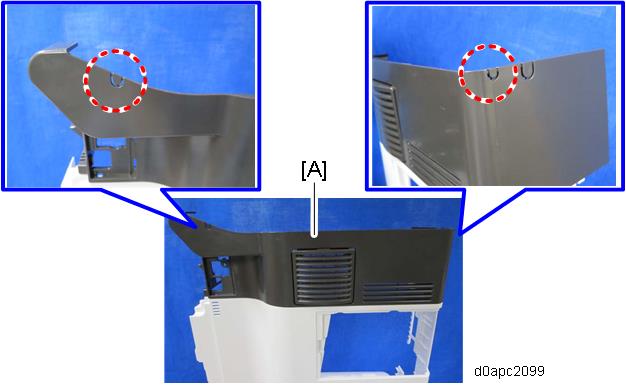

  27. Remove the tabs from the right cover [A] to create cutouts. On the rear side, use the small tab.

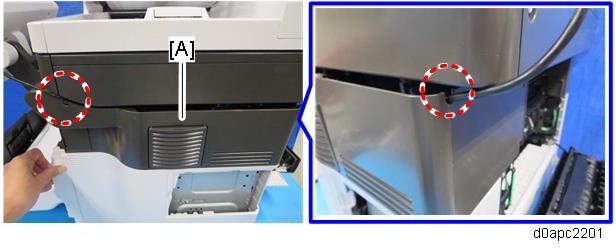

  28. Pass the USB cable through the cutouts, and then attach the right cover [A].

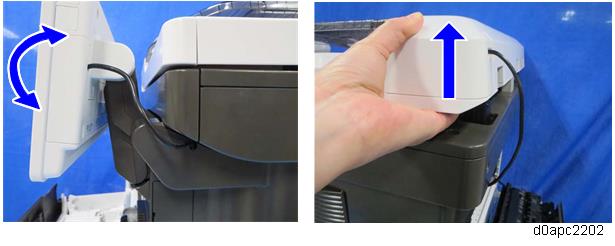

  29. Carefully, move the operation panel slowly up and down, and then lift the scanner at the rear, to make sure there is no tension on the USB cable.

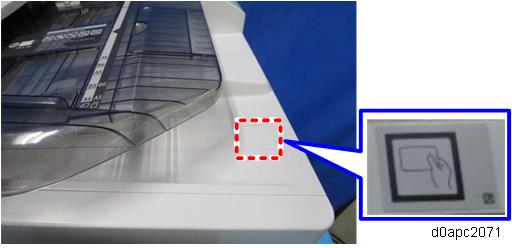

  30. Attach the decal as shown below.
