1. Remove the right cover. (Right Cover (MF))

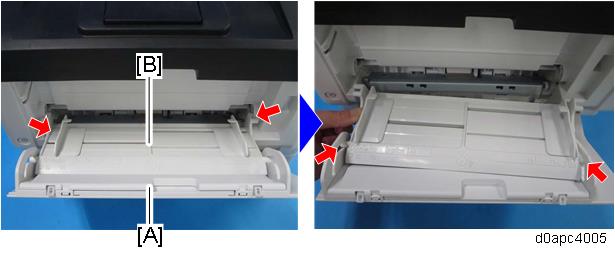

  2. Close the front cover, and then open the bypass tray [A].

  3. Release the four hinges to detach the paper guide plate [B].

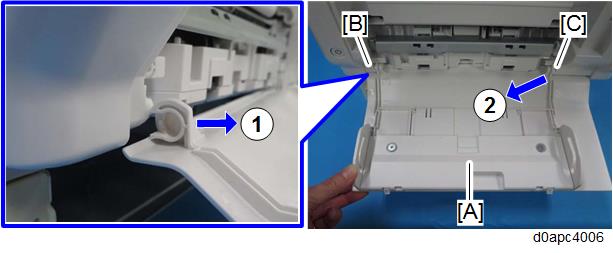

  4. Open the bypass tray about 90 degrees and remove the bypass tray [A].
    Release the left hinge [B] first (which is C-cut) by pulling forward, and then release the right hinge [C] by pulling obliquely toward the left, front.

    When reinstalling the bypass tray, first set the right hinge with the bypass tray wide open.

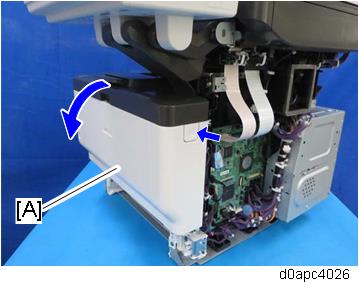

  5. Open the front cover [A] by pressing the front cover button.

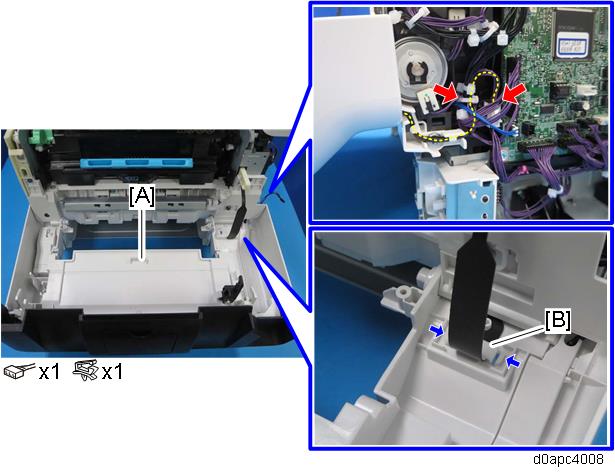

  6. Disconnect the harness from the front cover [A] and remove the fastened part [B] of the belt.

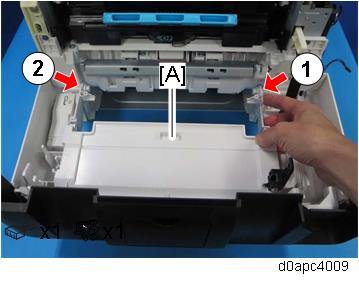

  7. Release both hinges to remove the front cover [A]. Release the right hinge first.
