P 501/502, IM 350F/350/430Fb/430F
Replacement and Adjustment
Electrical Components
DC Switch (SW4)
Remove the left cover. (
Left Cover (Printer)
,
Left Cover (MF)
)

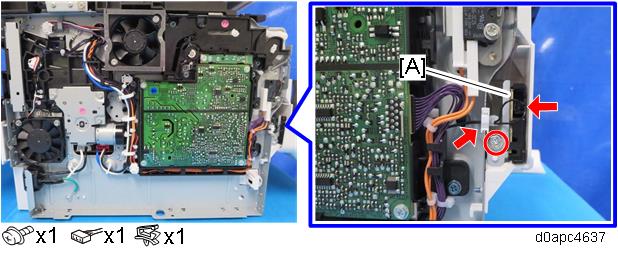

Remove the DC switch (SW3) [A] with the bracket.

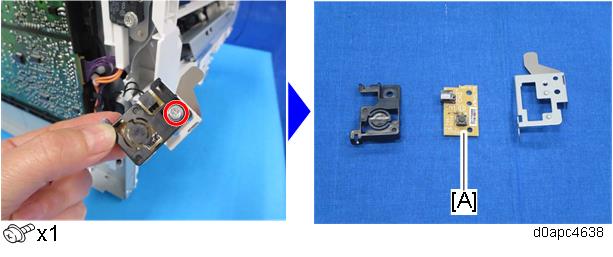

Remove the DC switch (SW3) [A] from the bracket.
