Apply quick-drying grease to the locations shown below.
| Location | Part name | Note | |
|---|---|---|---|

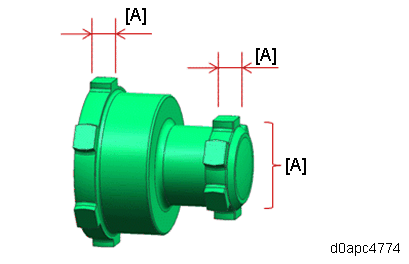

| [A] | Tip of drum joint cogs | JOINT:DRIVE:DRUM | 3 places. Apply around the cogs, and surface of the shaft tip. |
| [B] | Link tabs | LINK:DRIVE:DRUM | 3 places. Apply to the tab surfaces. |

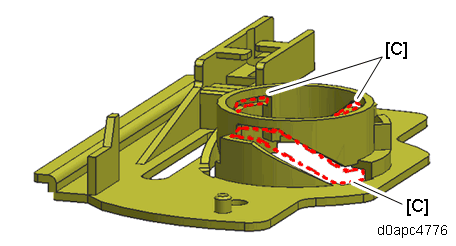

| [C] | Cam link connection | CAM:DRIVE:DRUM | 3 places. Apply to the surface of the openings marked with red. |
