The bypass tray can contain 100 sheets. Feeding from the bypass tray is performed by the rotation of the bypass paper feed roller. The bypass separation pad prevents paper from double feeding.

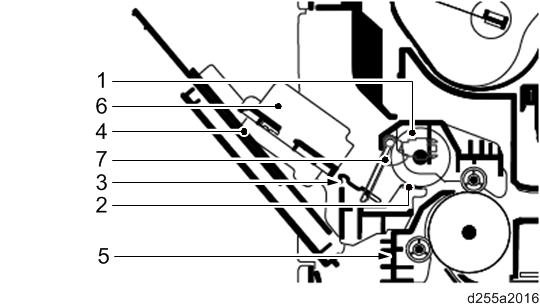

No. | Name | No. | Name |
|---|---|---|---|
1 | Bypass paper feed roller | 5 | Bypass frame |
2 | Bypass separation pad | 6 | Bypass paper width guide |
3 | Bypass bottom plate | 7 | Actuator (bypass paper end sensor (S9)) |
4 | Bypass tray |
