1. Remove the rear right stay. (Rear Right Stay (IM 550F/600F))
  2. Push the button [A] and open the front cover [B].

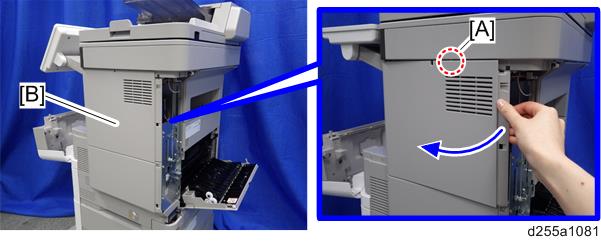

  3. Release the hook [A] of the right upper cover [B] by opening the cover in the direction of the arrow.

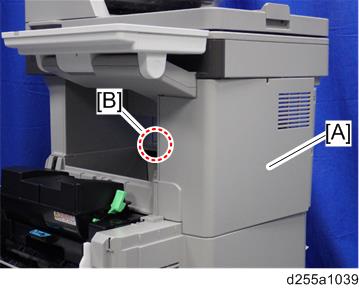

  4. Remove the right upper cover [A] by inserting a flathead screwdriver into [B].

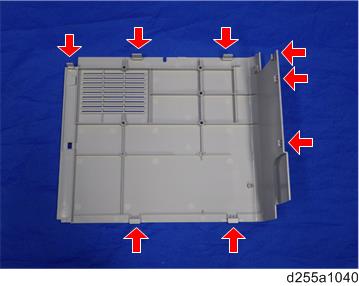

  • Be careful not to damage the hooks on the inside of the right upper cover when you remove or install the right upper cover.
