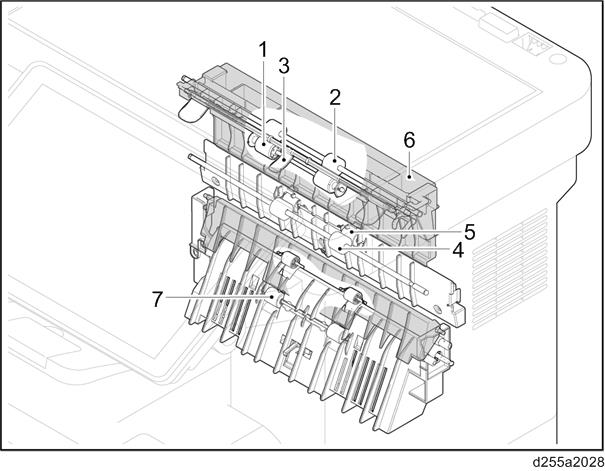

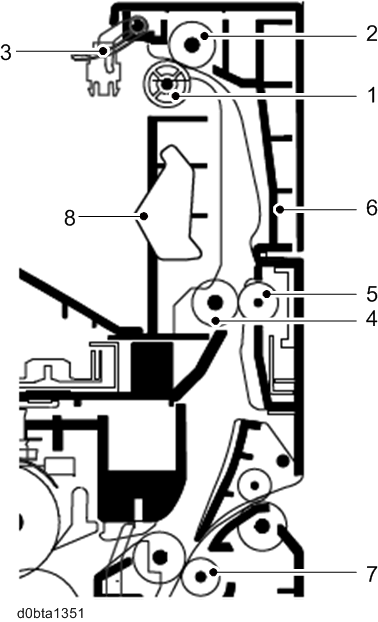

The paper exit unit consists of the transport path which sends the paper from the fusing unit to the paper exit tray, and the transport path which sends the paper to the duplex unit when duplex printing.
No. | Name | No. | Name |
|---|---|---|---|
1 | Upper paper exit pulley | 5 | Lower paper exit pulley |
2 | Upper paper exit roller | 6 | IM 550F/600F: Paper exit cover P 800/801: Upper cover |
3 | Actuator (paper tray full sensor) (IM 550F/600F, P 800/801) | 7 | Duplex feed pulley |
4 | Lower paper exit roller | 8 | Actuator (paper tray full sensor) (IM 600SRF) |
