Flat Cable between IOB (PCB17) and BiCU (PCB16)

When installing a new flat cable, fold it as shown below.

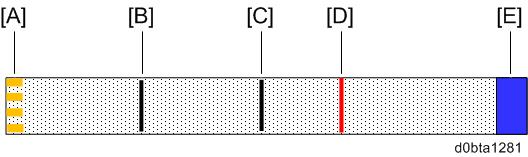

[A] Terminals
[B] Black line 1
[C] Black line 2
[D] Red line
[E] Stiffener

IM 550F/600F/600SRF

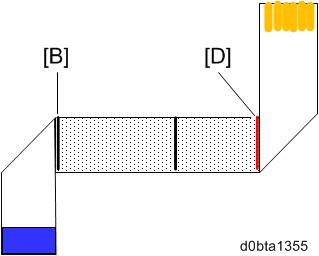

1. Align the edge of the cable with the black line 1 [B].
2. Align the edge of the cable with the red line [D].

P800/801

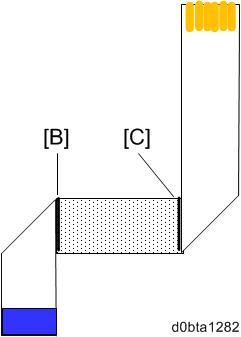

1. Align the edge of the cable with the black line 1 [B].
2. Align the edge of the cable with the black line 2 [C].
