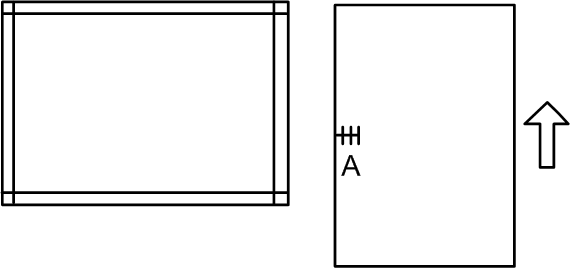

A: Side-to-side Registration

  1. Place the temporary test chart on the DF and make a copy from one of the feed stations.

  2. Check the registration, and adjust them using the following SP modes if necessary.

    SP No.

    SP Name

    Adjustment Range

    SP6-006-001

    ADF Adjustment Side-to-Side Regist: Front

    ±3.0 mm

    SP6-006-002

    ADF Adjustment Side-to-Side Regist: Rear
