IM 550F/600F/600SRFP 800/801
Installation
IEEE 802.11 Interface Unit Type M24 (M500-08)
Accessory Check
No.
Description
Q’ty
1

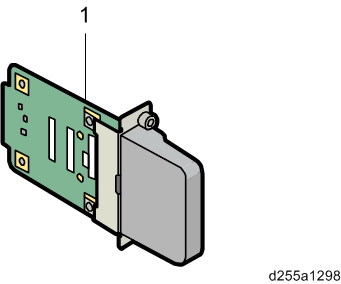

IEEE 802.11 interface board
1
