IM 550F/600F/600SRFP 800/801
Replacement and Adjustment
DF (IM 550F/600F/600SRF Only)
DF Front Cover

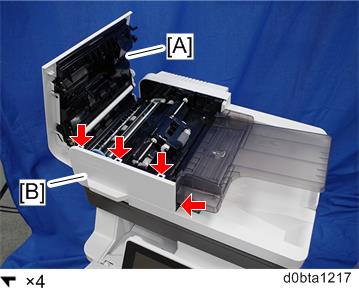

Open the DF top cover [A].
Remove the DF front cover [B].
