IM 550F/600F/600SRFP 800/801
Installation
Hard Disk Drive Option Type P8 (M500-05) (P 800/801 Only)

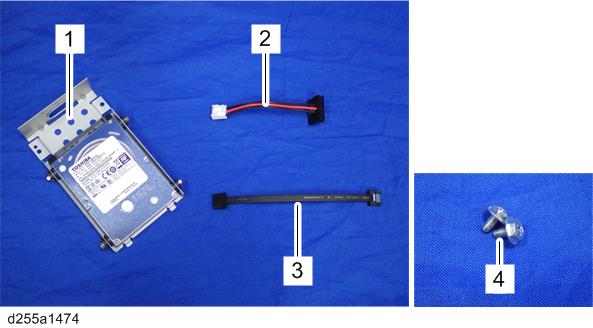

Accessory Check
No.
Description
Q’ty
1
HDD
1
2
Power source cable
1
3
Data cable
1
4
Tapping screw: round point: 3×6
2
Expand All
