1. Remove the upper cover. (Upper Cover)

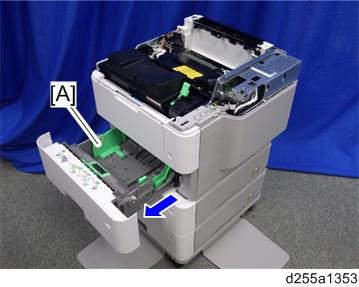

  2. Remove the paper feed tray [A] by pulling it out.

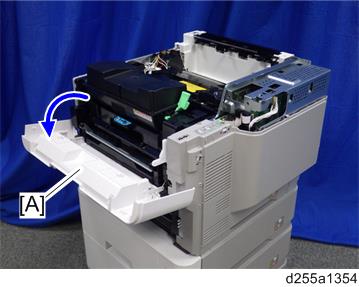

  3. Open the front cover [A].

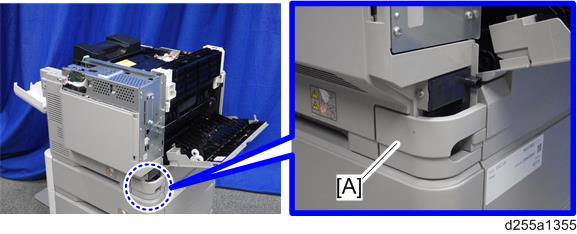

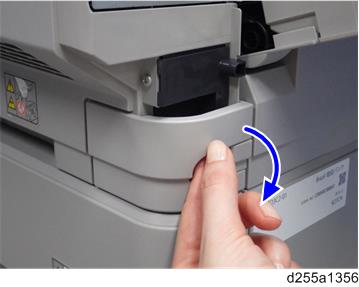

  4. Remove the power connector cover [A].

    • When removing the power connector cover, pull it in the direction of the arrow.
    • Be careful not to damage the hook on the power connector cover when you remove or install the power connector cover.

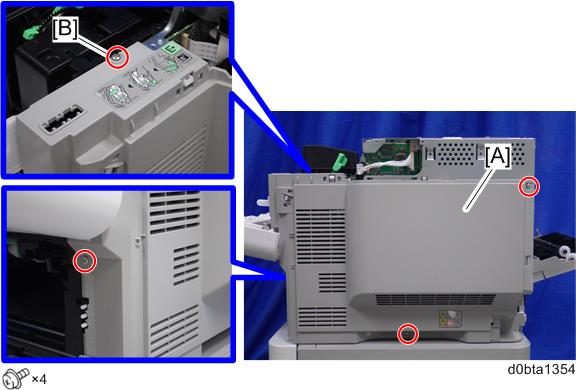

  5. Remove four screws from the right cover [A].

    • The screw [B] is a long screw. Be careful not to use the wrong screws when installing the right cover.

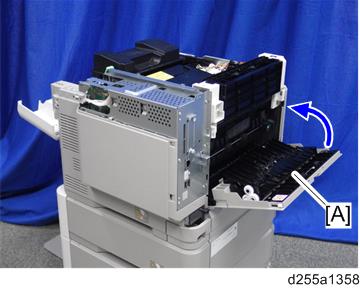

  6. Close the rear upper cover [A].

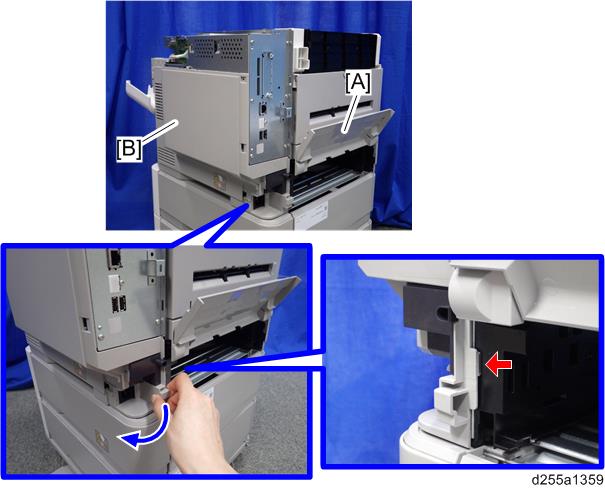

  7. Open the rear lower cover [A], and then release the hook of the right cover [B] by rotating it in the direction of the blue arrow.

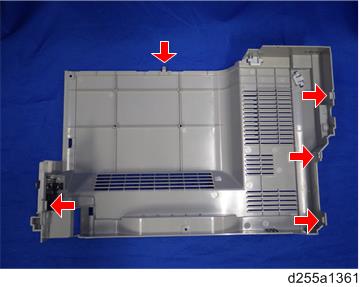

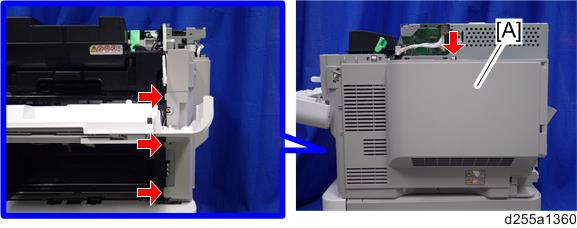

  8. Release the four hooks, and then remove the right cover [A].

    • Be careful not to damage the hooks on the inside of the right cover when you remove or install the right cover.
