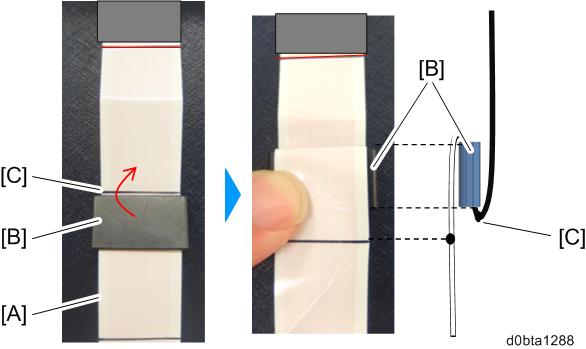

1. Pass the flat cable [A] through the core [B] and fold it along the black line [C].

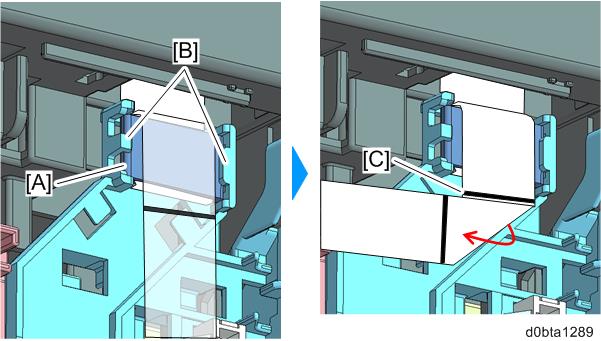

  2. Fix the core [A] to the bracket using the hooks [B].
  3. Fold the flat cable by aligning the edge of the cable with the black line [C].

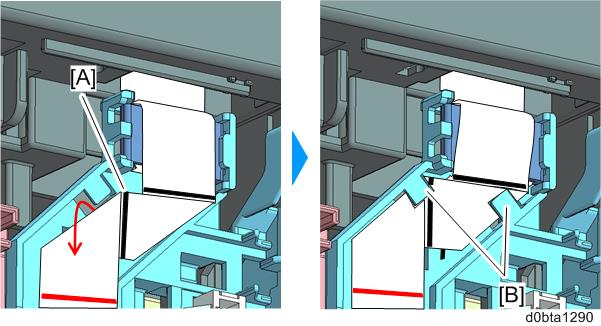

  4. Fold the flat cable by aligning the edge of the cable with the black line [A].
  5. Pass the flat cable behind cable guide hooks [B].

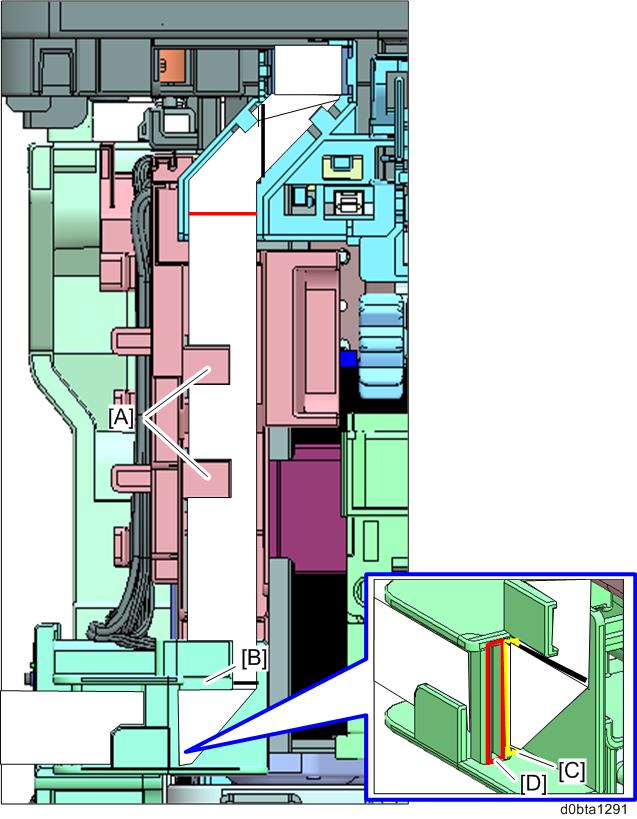

  6. Pass the flat cable behind cable guide hooks [A].
  7. Fold the flat cable by aligning the edge of the cable with the black line [B].
  8. Pass the flat cable through the hole [C].
    Do not pass it through the hole [D].

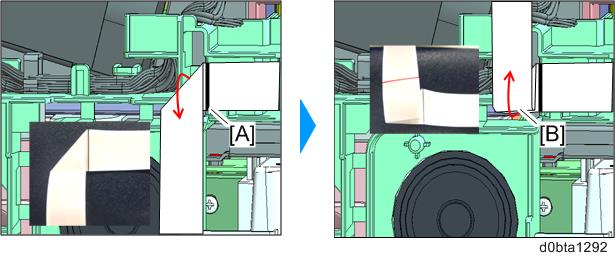

  9. Fold the flat cable by aligning the edge of the cable with the black line [A].
  10. Fold the flat cable along the edge [B].
  11. Pass the flat cable behind cable guide hook [A].
  12. Fold the flat cable along the black line [B].
  13. Pass the flat cable behind cable guide hook [C].

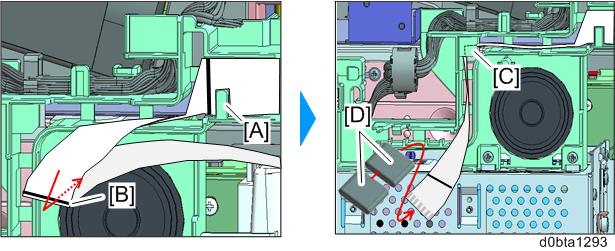

  14. Pass the flat cable [A] through the cores [D].
  15. Fold the flat cable by aligning the edge of the cable with the black line [A].
  16. Fold the flat cable along the edge [B].
  17. Set the cores [A] in the holder and connect the flat cable to the BiCU (PCB16) [B].
